Product Introduction

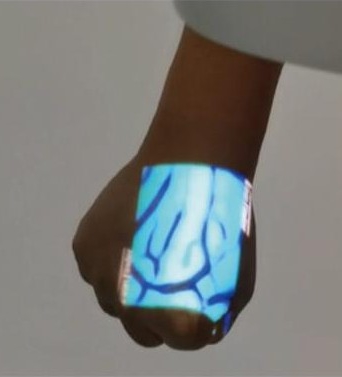

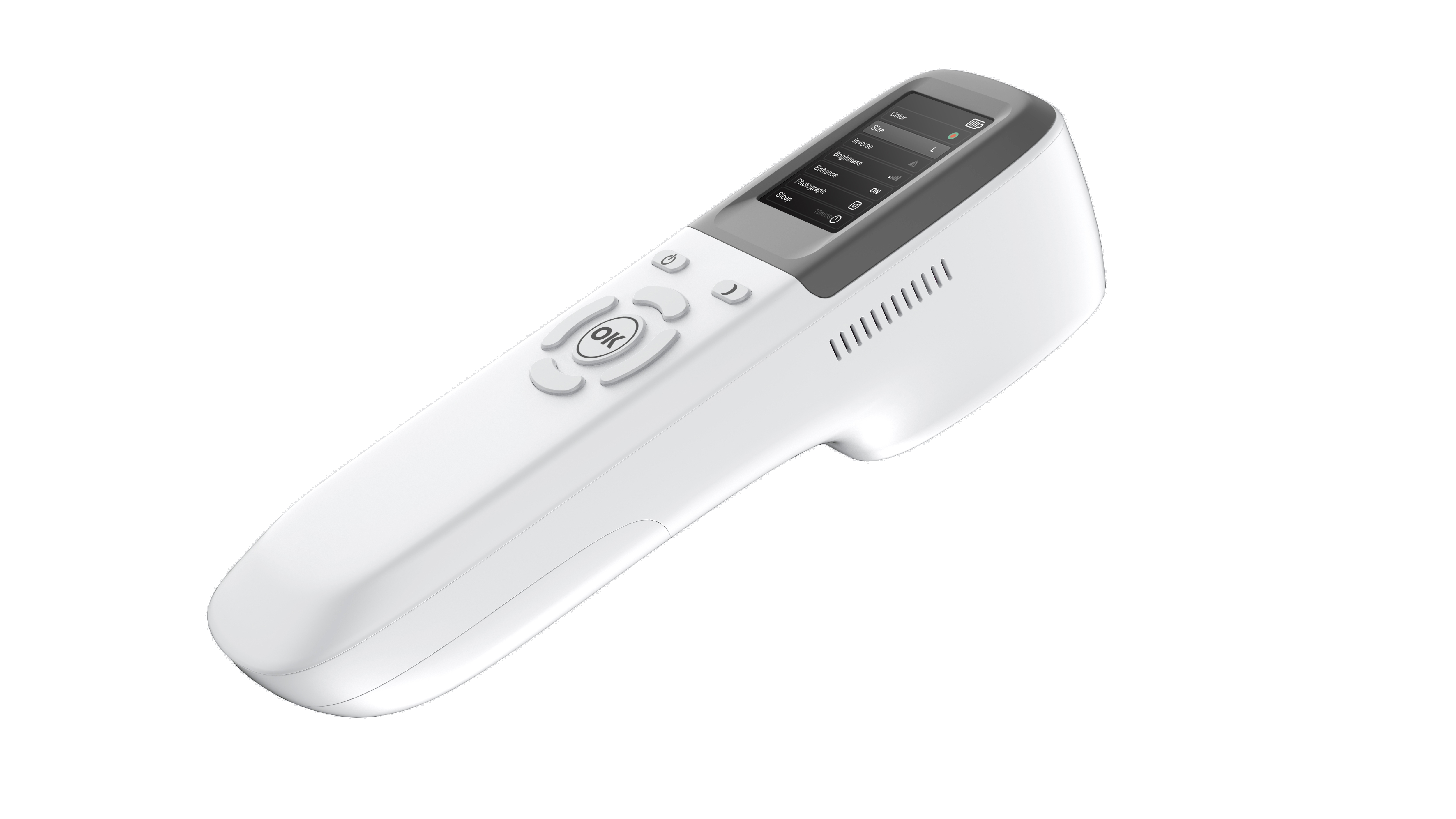

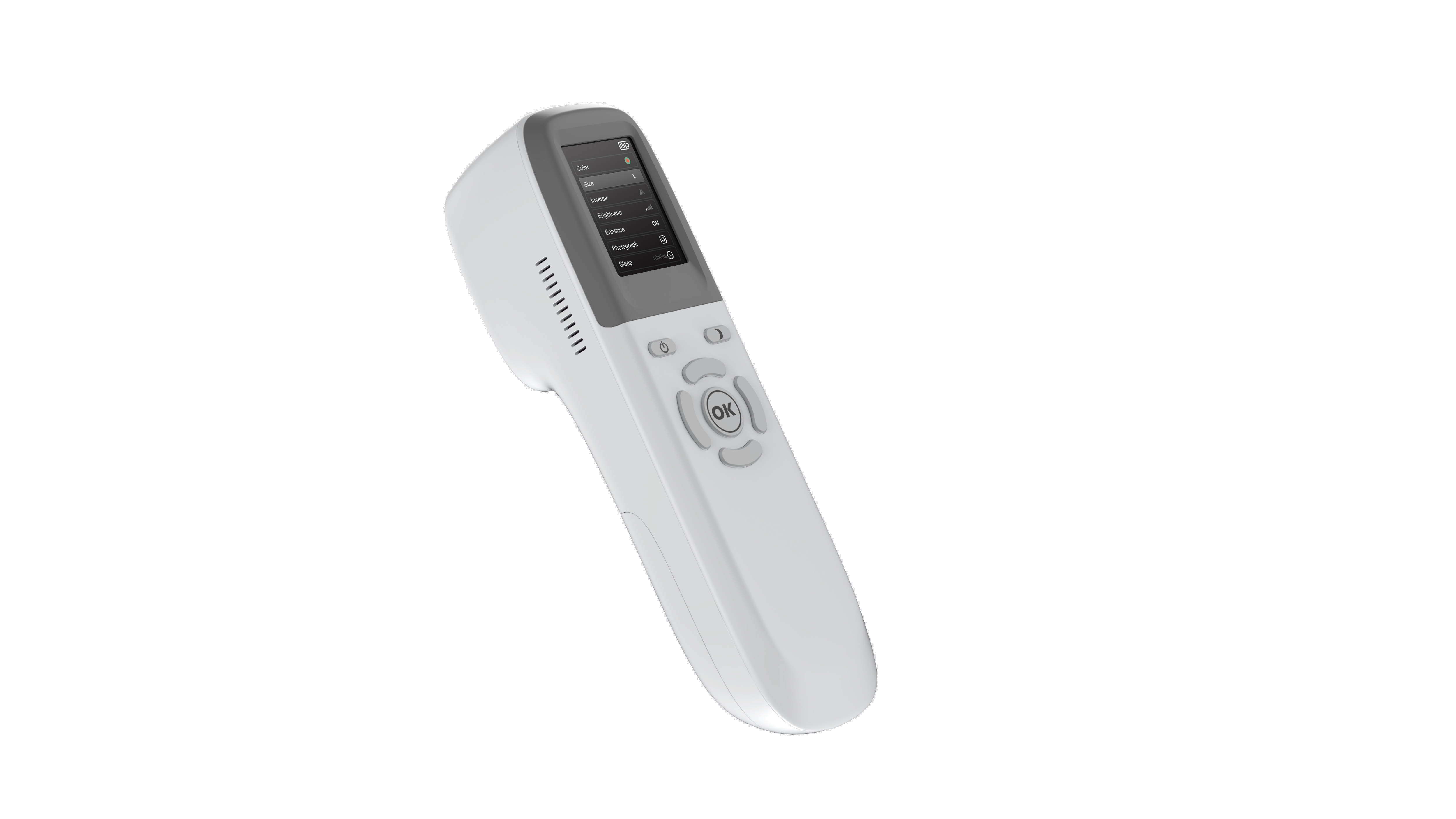

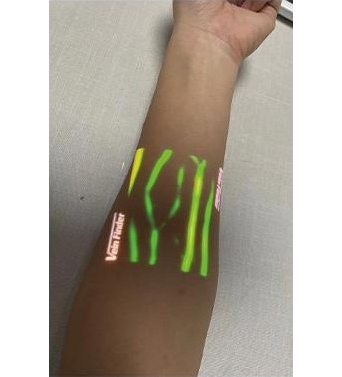

QV-600 is a portable vein finding device. It can project the blood vessels image on skin surface accurately and timely. The ergonomic design makes it very comfortable to hold. And the optional desktop stand and mobile trolley are available for multiple application situations.

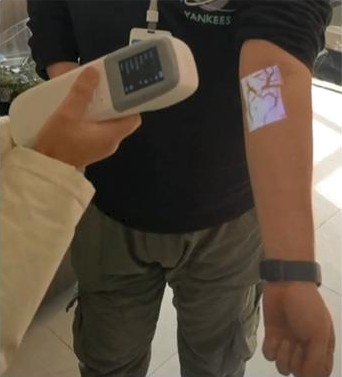

Help doctors and nurses easily find veins of various patients, such as obesity, hairy or dark skin people, etc. It highly increases the success rate of puncture thus reduces the cost and pain.
This device also can be used to examine patients with varicose veins, and avoid closed or bifurcated veins.
Mobile stand
High quality aluminum alloy structure. Support angle rotate and height adjust by a wide margin. Five cart castor with brake.

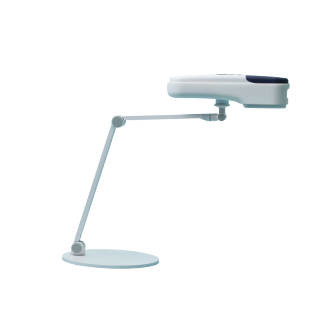

Table stand
High quality aluminum alloy and steel structure. Suppot angle rotate and height adjust.
Functions:
This device has various user-defined functions, which can adapt to different ages, body shapes, skin colors, weights and various operating environments. And it can be used for dialysis elbow puncture, beauty and infant puncture.
- 12 Colors Available: Suitable for different skin colors or environments
- 3 Sizes Available: Suitable for adults, children and newborns
- 6 Levels of Brightness: Adjust the projection image to the most comfortable brightness
- Inversion: Reduce arm hair interference and make blood vessels clearer
- Enhancement Mode: Enhance the clarity of blood vessel detection
- Sleep Mode: Enter into low power mode when the user needs short intervals and can be waked up quickly. And it can customize the sleep time
- Camera: It can save vein images to record it
- Image storage capacity: 6000 sets
- Connect the computer to view the storage images
- Automatic shutdown without operation for 35 minutes
| Item | Specification |
|---|---|
| Wave Length | 760-940nm |
| Infrared detection depth | 0-10mm |
| Best detection distance | 15-25cm |
| Accuracy of blood vessel position | ±0.3mm |
| Accuracy of blood vessel resolution | ±0.3mm |
| Low working noise | ≤40dB |
| Battery | Samsung 5000mAh rechargeable lithium battery, 3 hours duration |
| Fixed Option | Mobile stand, benchtop, handheld |
| Weight | 450g |
| Size | 240mm*60mm*65mm |
| Item | Specification |
|---|---|
| Suitable for | Adult, child, infant |
| Color | 12 Colors |
| Sizes | Large, medium, small |
| Inversion | Yes |
| Projection Brightness | 6 levels adjustable |
| Enhancement | Yes |
| Sleep Mode | Yes (adjustment：10mins, 15mins, 20mins, 25mins, 30mins) |
| Camera (image saving) | Yes |
| Battery | 5000mAh |
| LCD Display | 2.4 Inch |
| Language | 12 languages |
